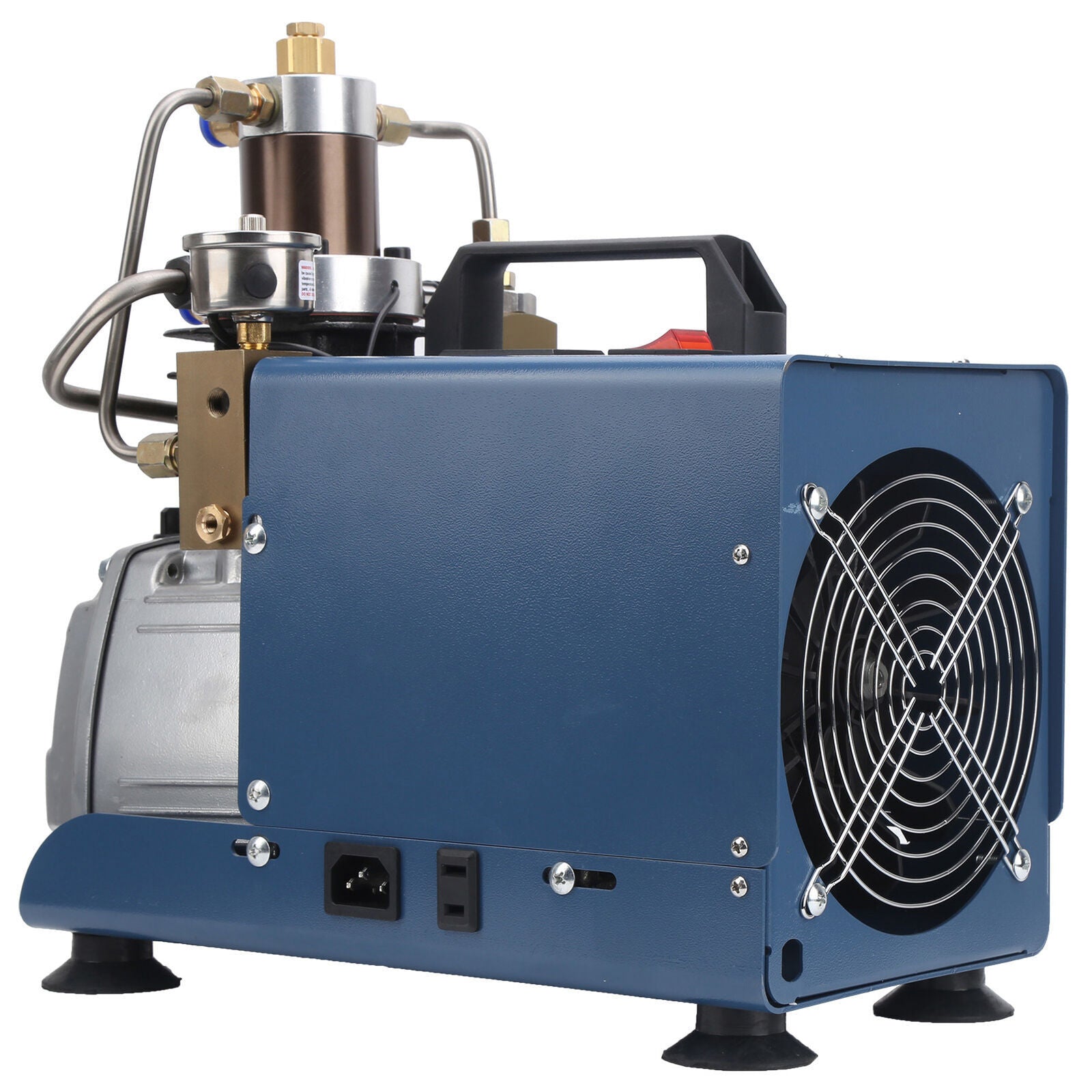

4500psi PCP Electric Air Compressor

Specification:

Item Type: Air Compressor Pump
Colour: Blue
Purpose: High pressure air pump
Fillable Container Capacity: 0-3L
Pressure Range: 0-40mpa
Working Pressure: 0-30mpa/0-4500psi
Compression Level: Secondary compression
Air Pump Voltage: 220V-50HZ/110V-60HZ
Power: 1800W
Cooling Method: Air cooling + water cooling

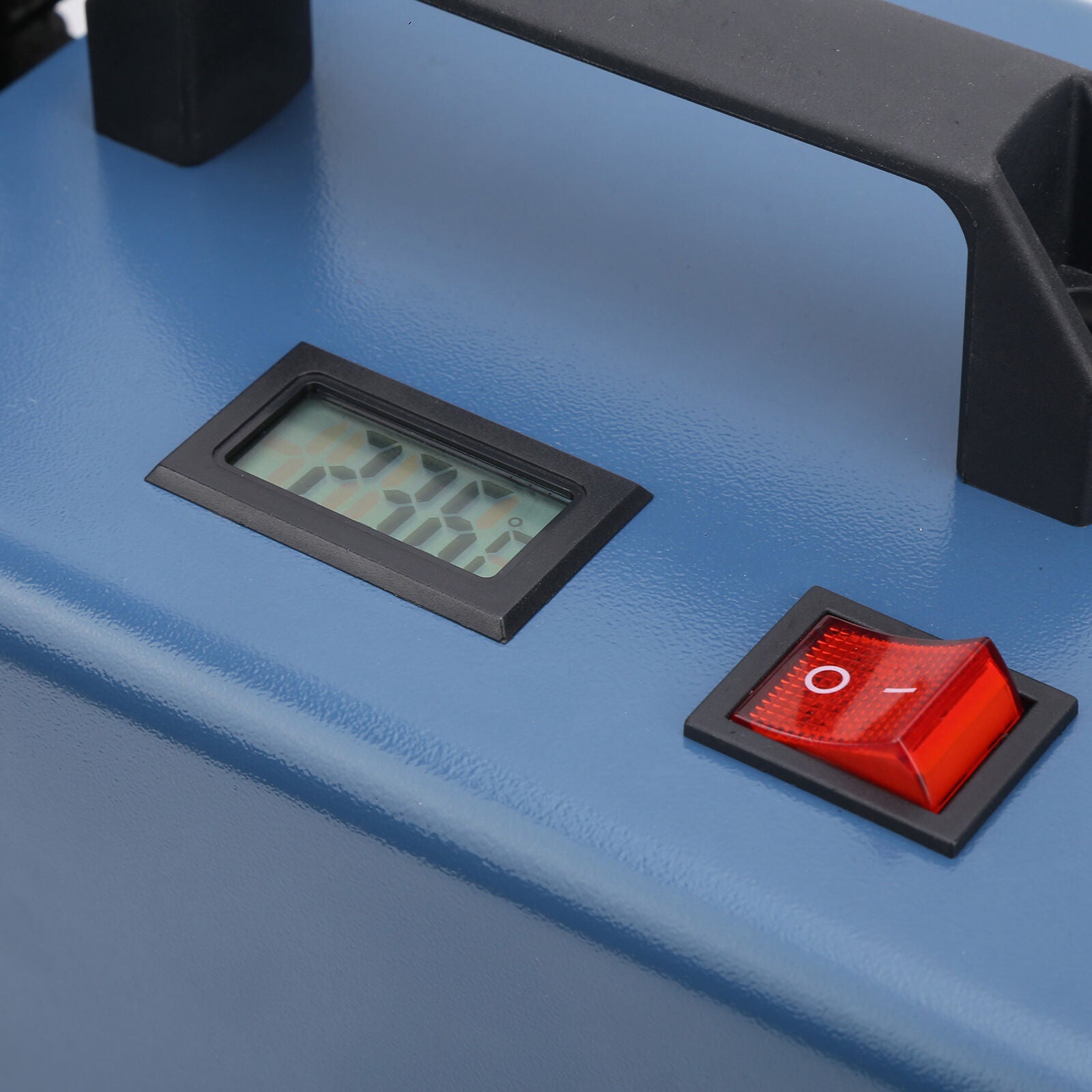

Thermometer: Power supply 2 LR44 button batteries (not included)
Please see the video for the specific battery installation method.

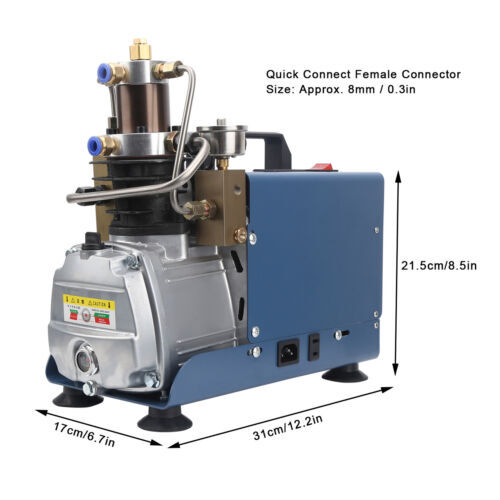

Outlet Pipe Connector Type: 8mm quick connect female connector, (Approx. 8mm / 0.3in)
US tire connector,
M10 x 1 external screw

Size: Approx. 21.5cm / 8.5in
31cm / 12.2in
17cm / 6.7in

1. Check/add oil to the corresponding position (see the instructions or ask customer service for details).
2. Replace the breathing plug. Replace the breathing plug in the circle with the transport plug on the machine.
3. Install the (oil-water filter) the seal gasket is already present at the factory, and just tighten it properly.
4. Install the air outlet pipe.
5. Install the water pump.
6. Turn on the power supply of the air pump and start water circulation.
7. Connect the outlet pipe to the container, tighten the pressure relief valve after starting the machine, adjust the required air pressure, and press the switch to start inflation.

1 x Air Compressor Host
1 x Power Cable
1 x Outlet Pipe
2 x Water Pipe
1 Box Water Pump(1 x water pump + 1 x adapter)
1 Bag Oil-Water Separator Accessories(1 x water separator + 2 x gasket
+ 2 x washer + 25 x filter sponge + 25 x filter rod)
1 Bag Accessories(1 x breathing plug + 2 x pressure relief screw + 1 x side drain plug + 1 x high pressure valve sheet + 1 x low pressure check valve + 7 x explosion-proof valve + 4 x washer + 5 x gasket + 2 x high pressure gas ring + 1 x US plug valve connector)
1 x Anti-Vibration Pad
1 x User Manual
